Mega IO Expansion Shield V2.3 For Arduino Mega

SKU: DFR0165

$33.47 AUD, inc GST

More Views

Mega IO Expansion Shield V2.3 For Arduino Mega
33.47 AUD

SKU: DFR0165

$33.47 AUD, inc GST
1 reviews 0 5 5
Ships today (delivered by Mon, 12th of Dec)
Shipping Offer

OR

Introduction

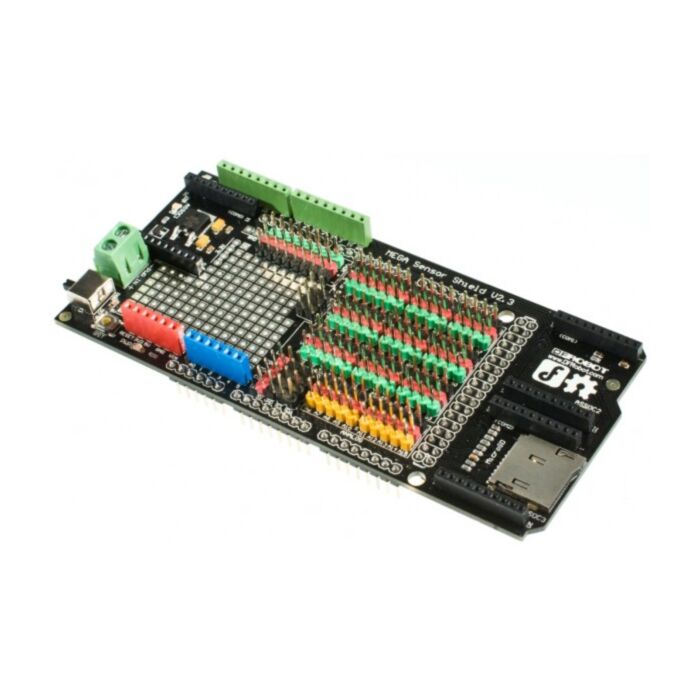

This is version 2.3 of the Mega IO Expansion shield. This shield is extra large and includes 3 Xbee slots, 1 microSD slot, Arduino shield headers to plugin most Arduino shields. It also includes a prototyping area and breakouts for Digital pins 14 to 53, Analog pins 6 to 15 and PWM pins 2 to 9. This shield can be a major communications hub for your projects.


Specifications
  • support most of the arduino shield
  • compatible with the Arduino Mega boards/DFRobot ADK/Arduino ADK
  • Extended TTL connection pins for four Serial ports
  • DIP prototyping area makes it easy to add more chips or electronic components
  • 3 Xbee slots
  • 1 microSD slot
  • power selector to select between Arduino Mega power or external power
  • Size:125 x 57 mm


Shipping List
  • Mega IO Expansion shield V2.3(1 unit)
