Maxbotix LV-MaxSonar-EZ1 Sonar Range Finder MB1010

SKU: POLOLU-726 Brand: Pololu

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

MaxBotix ultrasonic sensor line comparison chart.

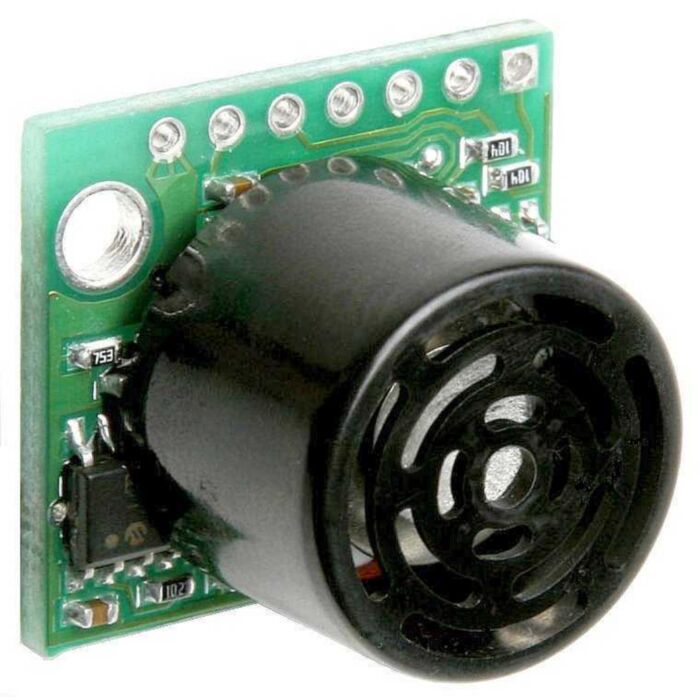

The Maxbotix LV-MaxSonar-EZ family of sonar range finders offers very short- to long-range detection and ranging in an incredibly small package with ultra-low power consumption. The LV-MaxSonar-EZ detects objects from 0 to 6.45 meters (21.2 feet) and provides sonar range information beyond 15 cm (6") with a resolution of 2.5 cm resolution (1 in). Objects between 0 and 15 cm range as 15 cm. The sensor provides three output interfaces, all of which are active simultaneously: digital pulse width output, analog voltage output, and asynchronous serial digital output. The LV-MaxSonar is available in five factory-calibrated beam patterns (EZ0-4).

For a higher-resolution, longer-range version, please consider the XL-MaxSonar-EZ and XL-MaxSonar-AE families of distance sensors.

Specifications and Features

  • Small and light: 0.870" x 0.785" x 0.645" (2.2 x 2.0 x 1.6 cm), 0.15 oz (4.3 g)
  • Long range detection: 0 – 6.45 m (21.2 ft)
  • No dead zone (detections from 0 to 6" are output as 6")
  • Resolution of 1" (2.5 cm)
  • Low typical current consumption: 2 mA
  • Runs on 2.5 – 5.5 V
  • 42 kHz ultrasonic sensor
  • 20 Hz reading rate
  • Free-run or triggered operation
  • Three interfaces (all are active simultaneously):
    • Serial output: asynchronous, logic-level, inverted, 9600 bps 8N1
    • Analog output: (Vcc/512) / inch (10 mV/inch when input voltage Vcc = 5 V)
    • Pulse width output: 147 µs/inch

Selecting the right distance sensor

Since there are 15 members of the XL- and LV-MaxSonar acoustic distance sensor family, Pololu recommend using the Maxbotix sonar range finder selection guide when choosing a acoustic range sensor for your application. There are 5 different beam configurations for the LV-MaxSonar family (EZ0 – EZ4), each pictured below.

LV-MaxSonar-EZ beam patterns (range shown on 1-foot grid to various diameter dowels)

Maxbotix LV-MaxSonar-EZ0 MB1000 beam characteristics:

Maxbotix LV-MaxSonar-EZ1 MB1010 beam characteristics:

Maxbotix LV-MaxSonar-EZ2 MB1020 beam characteristics:

Maxbotix LV-MaxSonar-EZ3 MB1030 beam characteristics:

Maxbotix LV-MaxSonar-EZ4 MB1040 beam characteristics:

People often buy this product together with:

Sharp GP2Y0A21YK0F Analog Distance Sensor 10-80cm Sharp GP2Y0A21YK0F Analog Distance Sensor 10-80cm
Sharp GP2Y0A02YK0F Analog Distance Sensor 20-150cm Sharp GP2Y0A02YK0F Analog Distance Sensor 20-150cm

Dimensions

Size: 0.870" x 0.786" x 0.645"
Weight: 4.3 g

General specifications

Resolution: 2.5 cm
Maximum range: 6.45 m
Minimum range: 0 m1
Sampling rate: 20 Hz
Baud: 9600
Minimum operating voltage: 2.5 V
Maximum operating voltage: 5.5 V
Supply current: 2 mA

Notes:

1
Objects closer than 15 in are reported as 15 in.
