Lithium Ion Polymer Battery - 3.7v 1200mAh

SKU: ADA258

$15.04 AUD, inc GST

More Views

Lithium Ion Polymer Battery - 3.7v 1200mAh

SKU: ADA258

$15.04 AUD, inc GST

Retired Product

Replaced by: CE04377
This product has been replaced by: CE04377

Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.7V. This battery has a capacity of 1200mAh for a total of about 4.5 Wh. If you need a larger battery,Adafruit also has a 2500mAh+ model

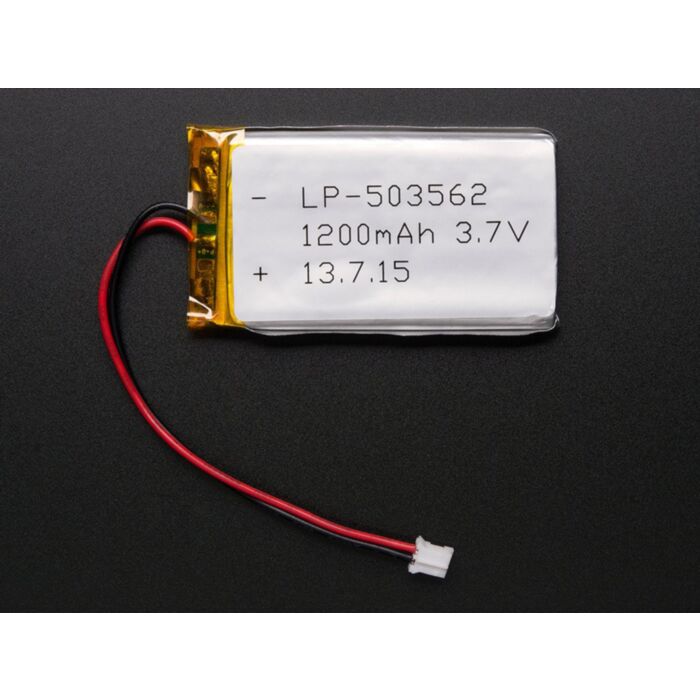

The batteries come pre-attached with a genuine 2-pin JST-PH connector as shown and include the necessary protection circuitry. Because they have a genuine JST connector, not a knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 500mA or less.
Like most lipos, the batteries Adafruit sells does not have thermistors built in. This is why Adafruit suggests charging at 1/2C or even less - 500mA max in this case which is how much you can get from a USB port.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, do not abuse these batteries, do not short, bend, crush or puncture. As with all Lithium ion polymer batteries and with any power source - they should be used by experts who are comfortable working with power supplies.

Technical Details

  • Weight: 25g
  • Size: 1.35" x 2.55" x 0.23" (35mm x 65mm x 5.5mm)
  • Output: 1300mAh at 3.7V nominal
  • Datasheet - the datasheet may say 1300mAh but the capacity now is 1200mAh (it varies with batches)
