LCD Keypad Shield For Arduino

SKU: DFR0009

$16.12 AUD, inc GST

More Views

LCD Keypad Shield For Arduino
16.12 AUD

SKU: DFR0009

$16.12 AUD, inc GST
9 reviews 0 5 4.8
Ships today (delivered by Mon, 12th of Dec)

OR

Introduction

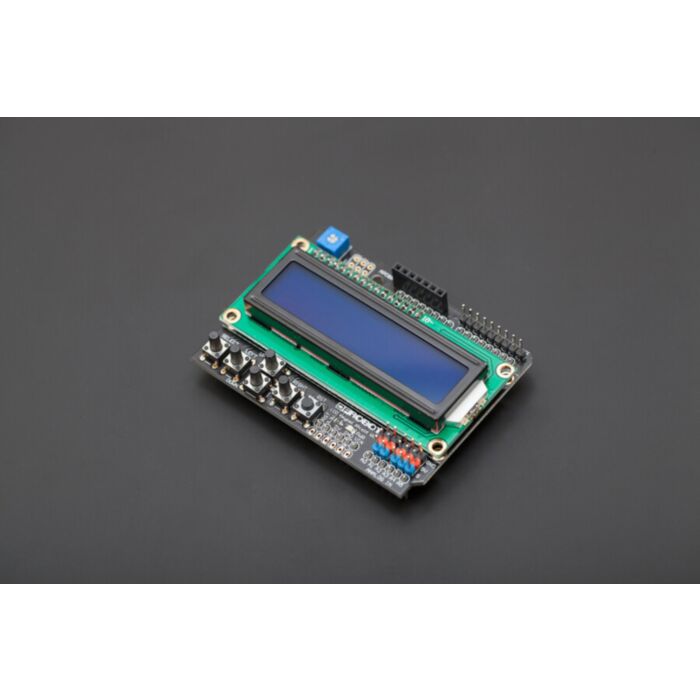

This is a very popular LCD Keypad shield for Arduino or Freeduino board. It includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Analog Pin 0 is used to read the pushbuttons. The LCD shield supports contrast adjustment and backlit on/off functions. It also expands analog pins for easy analog sensor reading and display.

Specification

  • Operating Voltage:5V
  • 6 Push buttons
  • Expanded Analog Pinout with  standard DFRobot configuration
