Input Shield For Arduino

SKU: DFR0008 Brand: DFRobot

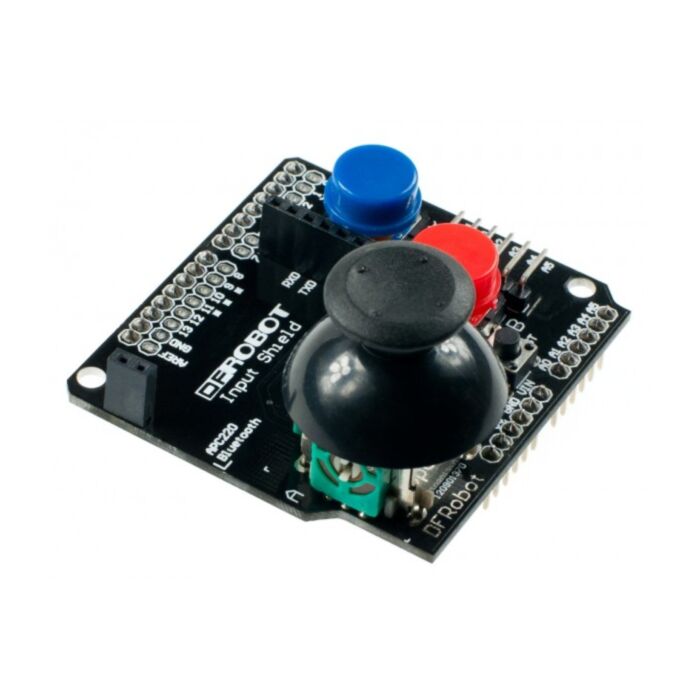

The Joystick / Input Shield for Arduino include a two axis mini joystick (with moment switch) as well as two colored push buttons. The shield easily connects to your Arduino using male to male pin headers.

$18.05 AUD, inc GST

$16.41 AUD, exc GST

Available with a lead time
Expect dispatch between May 06 and May 13

Quantity Discounts:

10-25 $15.92 (exc GST)
25+ $15.59 (exc GST)

The upgraded Arduino Input Shield includes a two axis mini joystick (with moment switch) as well as four colored push buttons(Red,Yellow,Blue,Green).The reserved APC220 Radio Data Module(SKU:TEL0005) interface and the Xbee interface isdeisgned to facilitate the realization of wireless rocker button controller. The shield can be easily stacked on top ofyour Arduino boards.It can also connect with OLED2864 & OLED9664.

Features

Dual axis mini joystick
Connects to your Arduino using male to male pin headers
Comes with 2 colored push buttons
The use of imported high-quality potentiometers and the PS button rocker. The rocker output an analog signal is to achieve vertical and horizontal control, which is attached to four keys at the same time. It also has two great circle button caps (cap color random round keys), a rocker button and a reset button.
The use of stack design is so that the plug can easily on Arduino Duemilanove or DFRduino Romeo.
The reserved APC220/Bluetooth module interface is to facilitate the realization of wireless rocker button controller.
The remaining unused ports are extended out of standby.

Specification

up D8
down A1
left D9
right D12
stick button A0
level_stick A3
vertical_stick A2
width 53.2 mm (2.09 in)
length 121.3 mm (4.78 in)
height 40.8 mm (1.61 in) (with pin); 31.2 mm (1.23 in) (without pin)

Projects

Project 1 Arduino Projects: Zelda Song Player
Things you may need in this project: Hardware components

Documents

Parts List

Input Shield For Arduino x1
