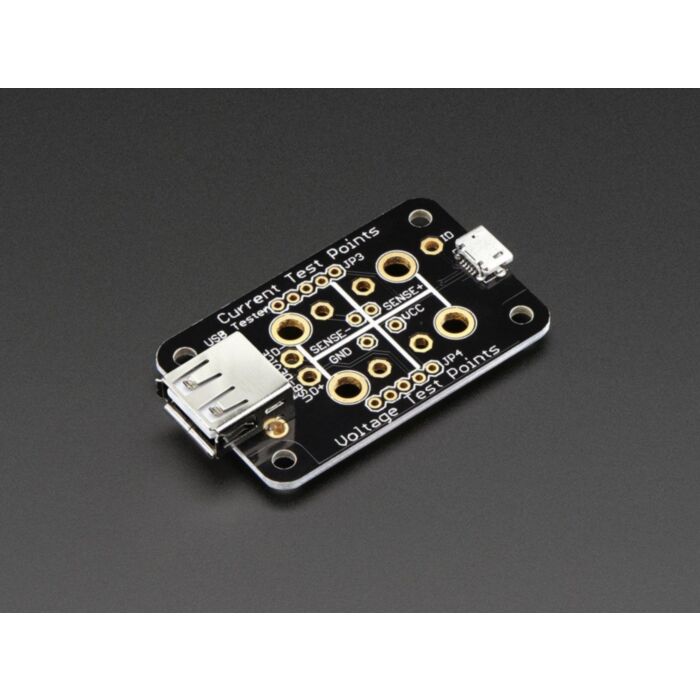

FriedCircuits USB Tester v2.0

SKU: ADA1456 Brand: Adafruit
USB has become the core of many projects, but it's troublesome to test USB voltage levels and current usage using a breadboard. Some people try to splice cables...
$27.10 AUD, inc GST
$24.64 AUD, exc GST

Quantity Discounts:

  • 10-25 $23.65 (exc GST)
  • 25+ $22.91 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

USB has become the core of many projects, but it's troublesome to test USB voltage levels and current usage using a breadboard. Some people try to splice cables and alligator clip onto frayed ends, but it's difficult to get solid readings. This USB Tester will make it much easier to monitor any USB project's power source.

As part of the USB spec, ports are limited to 500mA, so you want to monitor how close you are. Most people use USB hubs, both powered and unpowered, and with many devices connected, you can end up with less than 5V which can cause havoc on you projects. The USB Tester will make it a snap to monitor voltage levels and current usage without having to re-wire your breadboard. Just connect to your oscilloscope or DMM test leads, and you’re good to go! The USB Tester has both banana clip sized drills and standard 0.1” headers. When you are not testing current you can add a jumper for normal operation. The USB D+/D- pins are also broken out so you can monitor those on an oscilloscope, or for USB sniffing.

Comes with an assembled PCB, a stick of 0.1" male header and a jumper. Some light solder might be required depending on the configuration you want. For more information on how to use, check out the product page.
