Flymaple-A flight controller with 10 DOF IMU

SKU: DFR0188 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

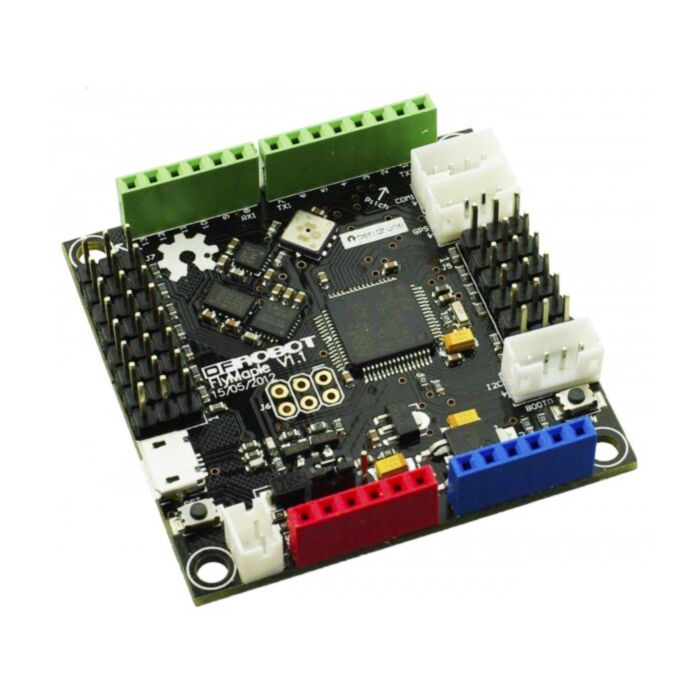

Flymaple is a Quadcopter controller board, based on the Maple Project. The FlyMaple embeds a STM32F103RET6 (ARM Cortex-M3) as it's main MCU. It integrates a 3-Axis accelerometer,a 3-Axis gyroscope,a 3-Axis compass and a barometric pressure sensor. By using the 10 dgrees of freedom IMUs and powerful 72MHz high-performation microcontroller, flymaple is powerful enough to handle a complex algorithm and manage a robot motion system at the same time.

The design of flymaple is based on the maple, which is an arduino sytle ARM processor. The Maple IDE will make Processing/Arduino programmers feel right at home. If you're familiar with Arduino then you can get started with the Maple IDE quite easily.

Flymaple is aimed to run on the balancing robots,mobile platform,helicopters and quadcopters which require IMUs and high performance real time controllers. It has an amazing scalability, because it's compatible with the Arduino shields. FlyMaple extends 6 PWM channels and 8 channels for GPIO for controlling ESC/Servo and capturing RC receiver input.

Applications

Aircraft
Balancing robots
Indoor inertial navigation
Altimeter

Specification

Working Voltage: 5v
STM32 Operating Voltage: 3.3v
7~12v External Power supply from the 2p JST connector
Output Voltage: 3.3v/5v or External input power
Microcontroller: STM32F103
Running at 72Mhz with 32bit Arduino sytle ARM processor(Cortex-M3)
Bootloader: Leaflabs Maple RET6 Edition
10 Degrees of Freedom on a single, flat board:
- ITG-3200 - triple-axis digital-output gyroscope
- ADXL345 - 13-bit resolution, ±16g, triple-axis accelerometer
- HMC5883L - triple-axis, digital magnetometer
- BMP085 - high-precision barometric pressure sensor
Programable through an Arduino-based development environment - Maple IDE
Compatible with most of Arduino shields
Extends 6 channels PWM pins for controlling ESC/Servo
Extends 8 channels GPIO for capturing RC receiver output
3x 4p JST connectors:
- Serial port 1
- GPS extension port
- I2C interface
Size: 50x50x12mm
Weight: 15g
Envionment Friendly: Rohs Compliance
