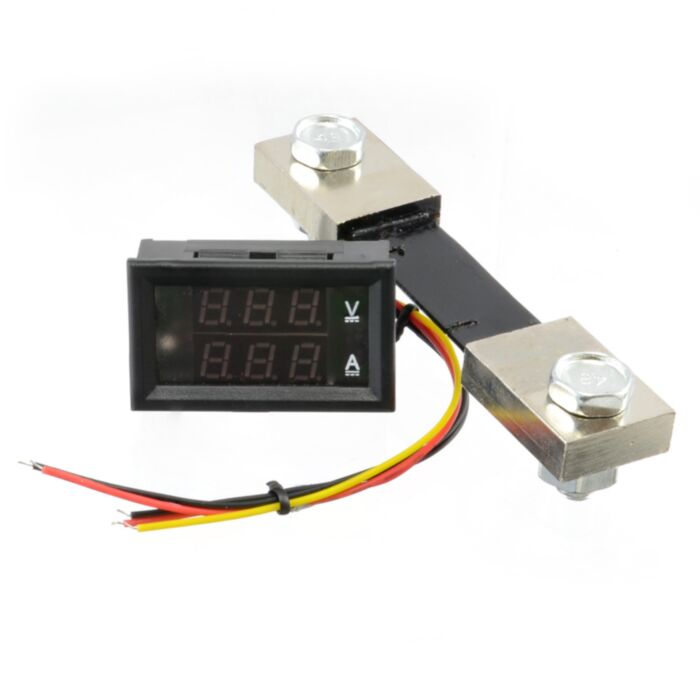

Dual Digital Display DC Voltmeter & Ammeter 0-100V 0-100A

SKU: 018-05-VAM-100V100A-BL

$30.96 AUD, inc GST

More Views

Dual Digital Display DC Voltmeter & Ammeter 0-100V 0-100A
30.96 AUD

SKU: 018-05-VAM-100V100A-BL

$30.96 AUD, inc GST
3 reviews 0 5 5
Ships today (delivered by Mon, 12th of Dec)
Shipping Offer

OR

An all in one solution for monitoring voltage and current. External shunt included for the 100A model.

Features:

  • Operating voltage:DC 4.5 ~ 30V
  • Measure voltage: DC 0 ~ 100V
  • Minimum resolution(V): 0.1V
  • Measure current :100A (external shunt included)
  • Minimum resolution(A): 0.01A
  • Operating current: <20mA
  • Display: three 0.28" LED digital tube
  • Display color: Red and Blue (two-color display)
  • Dimensions: 48 x 29 x 21mm
  • Mounting cutout: 45.5 x 26.5mm
  • Refresh rate: about 500mS / times
  • Measure accuracy: 1% (± 1 digit)
  • Operating temperature: -10 to 65° c
  • Operating Humidity: 10 to 80% (non-condensing)
  • Working pressure: 80 to 106 kPa

Wiring:

  • Black line (thin): vacant or buck circuit (module) negative
  • Red line (thin): power supply+
  • Black line (thick): COM, common measuring
  • Red line (thick): PW+, measuring terminal voltage input positive
  • Yellow line (thick): IN+, current input+
  • (Please refer to the wiring diagrams for more details)

Notice:

  • The voltage between the thin red and thin black lines must be within DC 4.5-30V
  • The ammeter can only be connected to the negative of the device under test
  • Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket
  • When the black thin line is not connected, it is recommended to use insulating tape around the exposed part of the wire, to prevent short circuits
  • If just to be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
