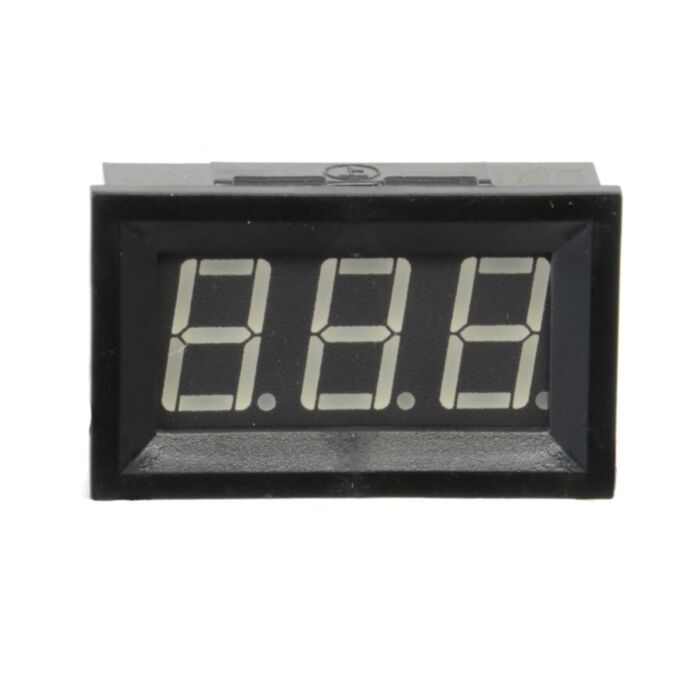

Digital Display DC Voltmeter 0-100V Blue

SKU: 018-05-VM-100V-BL

$7.89 AUD, inc GST

More Views

Digital Display DC Voltmeter 0-100V Blue
7.89 AUD

SKU: 018-05-VM-100V-BL

$7.89 AUD, inc GST
1 reviews 0 5 5
75 units ship in 15 to 20 days (delivered by Thu, 29th of Dec)
Shipping Offer
OR

Features:

  • Measuring Range: 0-100VDC
  • Accuracy: 1%
  • Display: 0.56" LED Segment Display
  • Refresh Rate: 500mS
  • Current: 15mA
  • Operating Temperature: -10ºC to 65ºC
  • Dimensions: 48x29x22mm (LxWxD)
  • Hole Size: 46x27mm
  • Lead Length: 15cm
  • Built in reverse connection protection

Wiring Option 1 (0-100V):

  • Red: Supply +ve (3-30VDC)
  • Black: GND (Common to both supply and target)
  • White: Target +ve to measure (0-100VDC)

Wiring Option 2 (3-30V):

  • Red + White (joined): Target circuit +ve (3-30VDC)
  • Black: GND
  • Note that this configuration the target circuit also powers the display!
