Colossal 6V 9W Solar Panel - 9.0 Watt

SKU: ADA2747 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

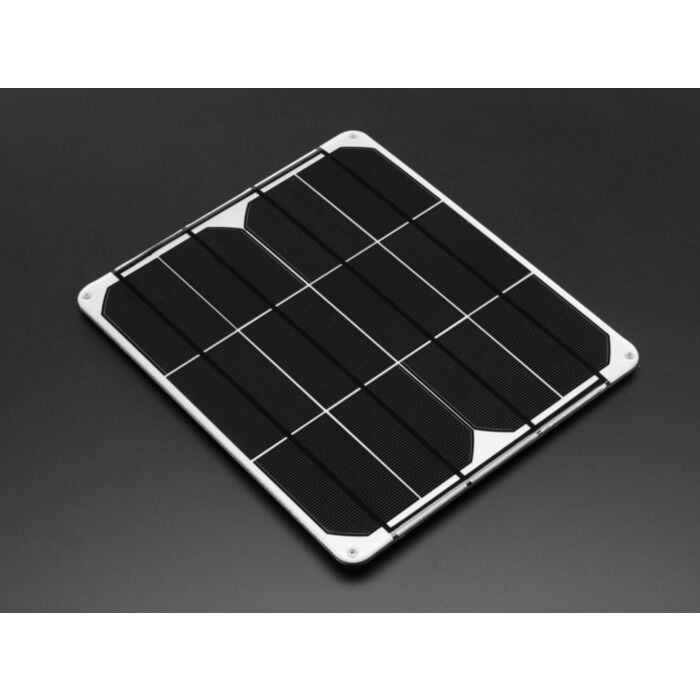

These 6 Volt, 9 Watt panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.

Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels Adafruit have been carrying. The substrate is an aluminum / plastic composite, specifically designed to be strong and lightweight. These panels can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

Adafruit have a range of solar panels to choose from: Medium 6V 2W, Large 6V 3.4W, Huge 6V 5.6W, and this one Adafruit are calling Colossal 6V 9W!

To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug

If you want to use this to charge a battery or run your project, check out Adafruit's optimized Solar Lithium Ion/Polymer charger!

For some nifty ideas on what to do with your solar panels, check out Voltaic's DIY page

Technical Details

Dimensions:

254mm x 223.5mm / 10" x 8.8"
Thickness (without screws): 5mm / 0.2"
Thickness (with screws): 10mm / 0.4"
Wire Length: 282mm / 11.1"
Weight: 309g

Specifications:

Monocrystalline cells - 19% efficient
Open Circuit Voltage: 7.0V
Peak Voltage: 6.0V
Peak Current: 1500mA
Peak Power: 9.0 Watt

Construction:

Urethane coating
3mm Aluminum/Plastic composite substrate

Mounting and Cables

Four screws on back corners of panel allow multiple mounting options
Output cable is 8.5 inches, 22cm long and has 3.5x1.1mm plug

For product support, replacement parts and warranty for all Voltaic products, click here!
