Capacitive Trackpad/Touchpad - Microcontroller-Friendly PS/2

SKU: ADA837 Brand: Adafruit

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

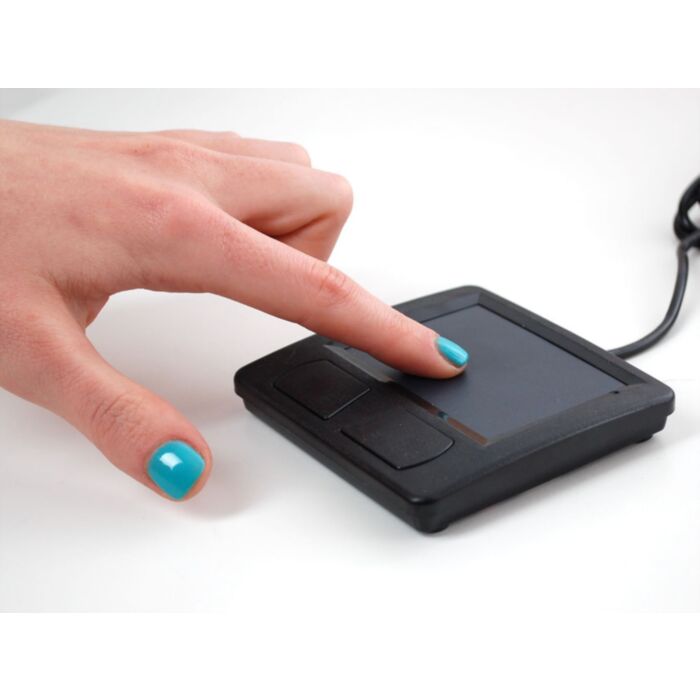

Add a cool touch interface with your project with this microcontroller-friendly track-pad. Adafruit found an easy to use PS/2 track-pad that is easy to use and interface with. This track-pad is two-in-one: you can use it either in relative 'mouse mode', where it spit out finger movements as they change OR you can put it into 'tablet mode', where it give the absolute X and Y location of the point being touched. It will also return Z coordinates for how hard the user is pressing and a flag if a finger is touching the pad or if the finger was removed (so you know its no longer being touched). This device does not support multitouch, but it does have basic gesture support for 'tap' and 'double tap' on the touch-pad area. There's also two tactile buttons that act like a the two buttons on a mouse.

Adafruit thought this would make a great interface, such as for a lighting controller, music devices, or for drawing shapes. Since its capacitive, you can overlay the pad with a paper or plastic label and it'll still work.

Of course, Adafruit wouldn't leave you with a datasheet and a "good luck"! It's really easy to use with Adafruit's Arduino library, simply connect using a PS/2 breakout adapter cable to any two digital pins and run Adafruit's example code.

Technical Details

  • Plastic case dimensions: 3.45" x 3.3" x 0.55" (88mm x 86mm x 14mm)
  • Touchpad size: 1.8" x 2.5" (47mm x 63mm)
  • Weight: 67 grams
  • Alps touchpad, PS/2 protocol only
  • Cable length: 55 inches
