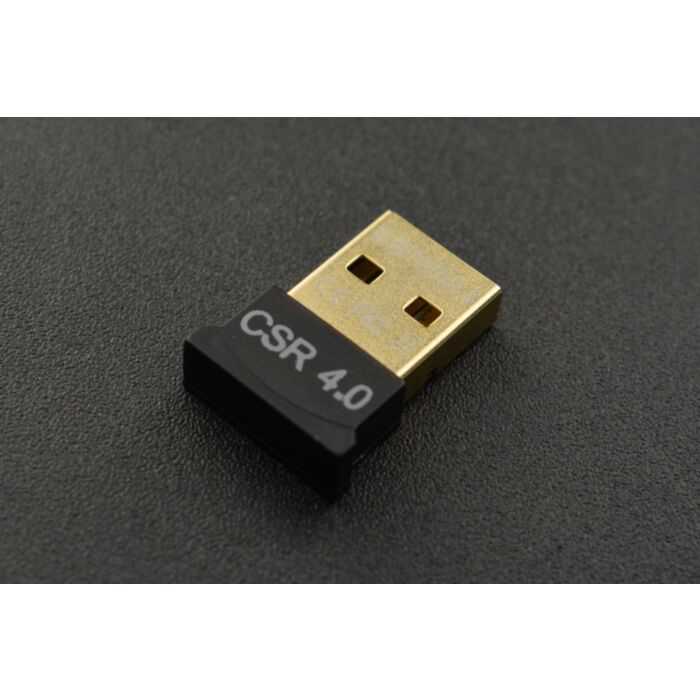

Bluetooth Adapter Mini

SKU: TEL0002 Brand: DFRobot

Bluetooth (Bluetooth) is a kind of wireless network transmission technology originally used to replace the infrared. Compared with infrared technology, Bluetooth can transmit data without targeting, transmission distance is less than 10 meters (infrared transmission distance of a few meters). In the signal amplifier with the help of communication distance and even up to 100 meters. Bluetooth technology is ideal for low power consumption of digital devices to share data with each other, such as mobile phones, handheld computers. Moreover, Bluetooth devices can transmit sound, such as Bluetooth headsets. Widely used Bluetooth specification version 2.0, mature, bandwidth is about 3Mbps very suitable for small file transfer (10MB below pictures, ring tones, e-books, manuscripts, etc.) to facilitate and speed have both.

$6.65 AUD, inc GST

$6.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

10-25 $5.86 (exc GST)
25+ $5.75 (exc GST)

Bluetooth (Bluetooth) is a kind of wireless network transmission technology originally used to replace the infrared. Compared with infrared technology, Bluetooth can transmit data without targeting, transmission distance is less than 10 meters (infrared transmission distance of a few meters). In the signal amplifier with the help of communication distance and even up to 100 meters. Bluetooth technology is ideal for low power consumption of digital devices to share data with each other, such as mobile phones, handheld computers. Moreover, Bluetooth devices can transmit sound, such as Bluetooth headsets. Widely used Bluetooth Specification version 2.0, mature, bandwidth is about 3Mbps very suitable for small file transfer (10MB below pictures, ring tones, e-books, manuscripts, etc.) to facilitate and speed have both.

This device does not include any drivers or software, however, you shouldn't need any as it supports the native Windows Bluetooth stack (Windows XP, Vista, 7). Plug it in and Windows should handle the rest.

Please note: Many of these modules have been found to have the same Bluetooth address. If you're simply trying to connect from your computer to a cell phone or headset, these will work great. If you're attempting to attach multiple modules to a computer, the computer will not be able to address both modules at the same time.

JavaScript display


Product Name	Bluno Bee - Turn Arduino to a Bluetooth 4.0 (BLE) Ready Board	Bluetooth 2.0 Module V3 For Arduino	Bluetooth 2.0 Bee Module For Arduino	Bluno Link - A USB Bluetooth 4.0 (BLE) Dongle	Bluetooth Adapter Mini
SKU	TEL0073	TEL0026	TEL0023	TEL0087	TEL0002
BLE Chip	TI CC2540	CSR BC417143	CSR BC417143	TI CC2540	—
Frequency	2.4GHz	2.4 ~ 2.48GHz unlicensed ISM band	2.4 ~ 2.48GHz unlicensed ISM band	2.4GHz	2.4 ~ 2.48GHz FHSS
Transfer rate	1Mbps GFSK	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	Asynchronous: 2.1Mbps (Max) / 160 kbps; Synchronous: 1Mbps/1Mbps	1Mbps GFSK	3Mbps
BLE protocol	V4.0	V2.0 + EDR	V2.0 + EDR	V4.0	V4.0
Modulation	GFSK	GFSK	GFSK	GFSK	FHSS
Power consumption	10.6mA average, ready mode: 8.7mA	—	—	10.6mA average, ready mode: 8.7mA	—
Sensitivity	-93dBm	=-84dBm	=-84dBm	-93dBm	=-84dBm
Working Voltage	3.3V	+3.5 V ~ +8 V DC and 3.3V DC/50mA	3.3V	3.3V	—
Operating temperature	-40°C ~ +85°C	-20°C ~ +55°C	-20°C ~ +55°C	-10°C ~ +85°C	-20°C ~ +55°C
Transmission distance	30m	20 ~ 30m	20 ~ 30m	10 ~ 20m	<10m
Dimension	32*22mm	402013mm	32249mm	32mm * 16mm	20168mm
Weight (g)	10	10	12	10	10
AT command to debug the BLE	v	v	v	v	—
master-salve machine switch	v	v	v	v	—
Transparent transmission	v	v	v	v	—
Wireless programming	v (Available for Bluno series)	—	—	v	—
iBeacons	v	—	—	—	—
BLE HID	v	v	v	v	v
Mobile App Control	v	v	v	—	—
Key Features	support Android and IOS applications,open source code,suitable for secondary development by the user	Compatible with APC220 communication interface, can be directly used in I/O Expansion Shield, Romeo, XBoard and etc,.	It can be plugged into the Arduino controller using the XBEE base for Bluetooth wireless control.	Standard USB interface. Support for firmware update via USB. Install Arduino UNO USB driver, default host mode.	USB2.0 standard interface. supports the native Windows Bluetooth stack.

Specification

Bluetooth standard 4.0 * USB Interface: USB2.0 standard
In the 2.4GHz to 2.483GHz frequency band operation between the use FHSS (Frequency Hopping Spread Spectrum) technology
Effective coverage: Support for 20m ultra-long transmission distance
Intuitive software user interface, without complicated settings
For Win7, Win8, Win10, WinXP, Mac OS X operating system.
Sensitivity <-85 dBM
Data transfer rate up to 3M bps Features
PC / Mac: Bluetooth dial-up Internet access (subject to mobile phones and other devices with Bluetooth)
PC: Bluetooth wireless local area network, which can make eight sets with small self-contained Bluetooth wireless computer network, this feature can also be Bluetooth wireless base station through a Bluetooth connector or plug the computer to the Internet (to be linked base station or computer must have been connected to the Internet)
PC: Bluetooth wireless fax (computer be equipped with fax software)
PC / Mac: Bluetooth File Transfer
PC / Mac: Bluetooth wireless data synchronization
PC: Bluetooth Virtual Serial Port
PC: Bluetooth wireless printing
PC / Mac: Bluetooth Human Interface (Bluetooth mouse and Bluetooth keyboard) * Bluetooth serial port with the computer, microcontroller, Basic Stamp 2, DF-Bluetooth Bluetooth module, Roboduino or Arduino controller connection, to achieve Bluetooth wireless remote control.

Documents

Product wiki

Parts List

Bluetooth Adapter Mini x1
