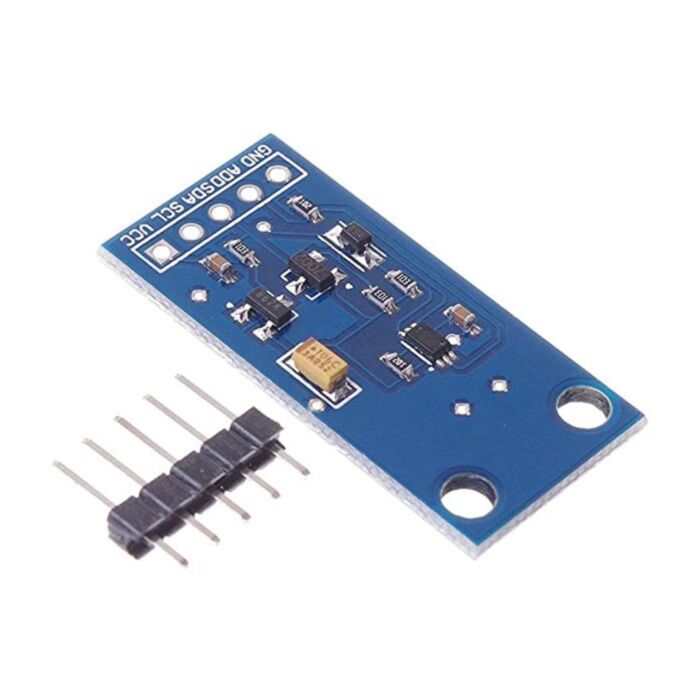

BH1750FVI Digital Light intensity Sensor Module (GY-30)

SKU: 018-DB-BH1750FVI

$7.38 AUD, inc GST
BH1750FVI Digital Light intensity Sensor Module (GY-30)
7.38 AUD

SKU: 018-DB-BH1750FVI

$7.38 AUD, inc GST
1 reviews 0 5 4
Ships today (delivered by Tue, 13th of Dec)
Shipping Offer

OR

BH1750FVI is a digital Ambient Light Sensor IC for I2 Cbus interface. This IC is the suitable for obtaining the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. It is possible to detect wide range at high resolution.

Description:

  • Chip: BH1750FVI
  • Power Supply: 3 - 5V
  • Light Range:0 - 65535 lx
  • Sensor Built-in: 16 bit AD converter
  • Size(L x W): Approx. 3.2cm x 1.5cm
  • Direct digital output, bypassing the complex calculation, bypassing the calibration
  • Don't distinguish between ambient light
  • Close to the spectral characteristics of visual acuity
  • Widely used to 1-lux high precision measurement
  • Standard NXP IIC communication agreement
  • BH1750FVI Datasheet

This product is listed in:

Documentation and Resources:

Product Comments

Documentation and Resources:

Customer Reviews

  1. Review by Stuart - Good breakout board that sets up the BH1750FVI for easy interfacing verified purchaser
    Rating
    80

    The BH1750FVI is capable of detecting up to 65k lux, but it should be remembered that direct sunlight can be more than 130k lux. So a diffusor will be needed for ambient light measurement over the full range. The breakout board works well providing the VCC and DVI power on reset timing as described in the data sheet for the BH1750FVI. The I2C interface worked seamlessly with the I2C MMBasic commands in the MicroMite. The datasheet does suffer from its translation to English, but just follow the many and detailed diagrams and the mathematics as they provide the required information. (Posted on 2/09/2014)
