AVR ATMEGA16 Dem2 Demo Development Board LCD & USB

SKU: 017-DB-DA11211 Brand: Sure Electronics

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

This demo board by Sure Electronics is a low cost development tool to learn the ATMEGA16 architecture and the onboard high performance peripherals.

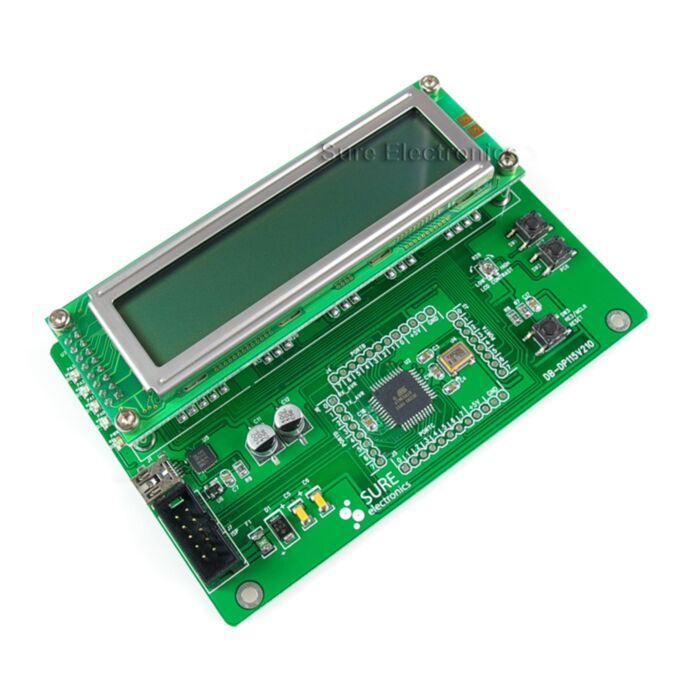

The board is populated with one ATMEGA16 IC, a 20*2 character LCD, four digits 7-segment LED display, three tactile switches, LM75 I2C digital temperature sensor, a USB mini-B socket, a buzzer, 10-pin IDC connector and LED indicators. Powered via USB mini-B socket, several program functions including temperature measurement, backlight adjustment and contrast adjustment, are selectable via a menu system displayed on the LCD. Both LCD and 7-segment LEDs can be used to display current temperature in ℃ and ℉. In addition, connecting this demo board and PC with a USB cable, you can also see more detailed information via Hyper Terminal.

You can use the STK500 USB Programmer (available seperatly) to program this board via 10-pin program/debug port.

Features:

  • Size:119.40(L) ×  73.40(W) ± 0.2mm
  • Mini USB power supply
  • ATMEGA16 microcontroller. Its I/O ports are drawn out for convenient reach.
  • 12 MHz high-speed crystal oscillator.
  • 10 pin ISP socket.
  • 24C02N IIC EEPROM on board.
  • LM75 IIC digital temperature sensor.
  • There is a 20*2 character LCD module on board. Pre-installed 4-digit 7-segment LEDs is under LCD module. The can be seen after removing LCD module.
  • Use ULN2003 Darlington transistors array to drive LED segments and speaker.
  • LCD module contrast can be adjusted by LM358 dual OP-Amps or Potentiometers R28
  • There are 3 function keys connected to RESET, PC7 and PC6 pins.
  • One Power indicator (Green). Four red port indicators are connected to PA0-3

Specifications:

Operating Temperature
-10℃ to +55℃
Storage Temperature
-20℃ to +75℃
DC current per I/O pin
20.0mA sink and draw
Minimum Load on speaker port
2ohm


Applications:

  • Experience in temperature measurement, contrast adjustment, backlight adjustment, LED and LCD display, etc
  • Experience in programming the board

Package Contents:

  • AVR ATMEGA16 Dem2 Demo Development Board x 1
  • 16*2 Characters LCD Module,No Backlight x 1
  • Mini USB Cable x 1
