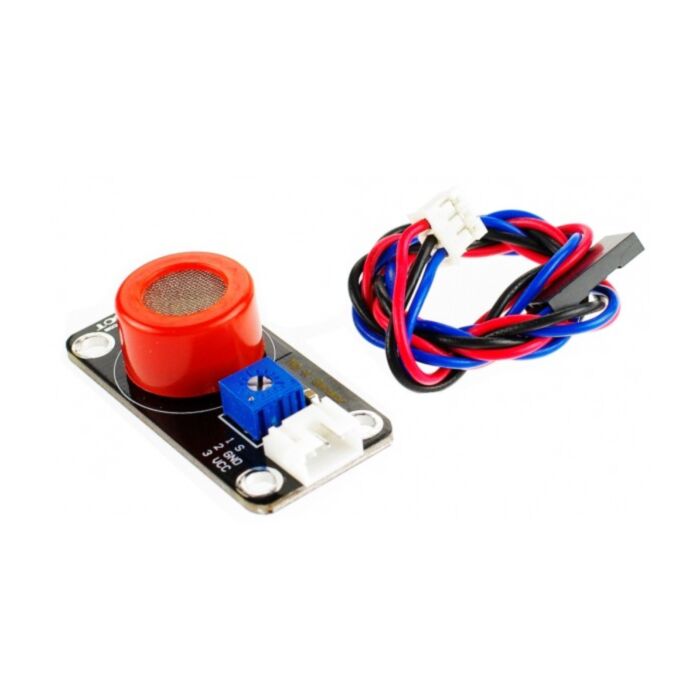

Analog CO/Combustible gas sensor (MQ9)

SKU: SEN0134

$19.59 AUD, inc GST

More Views

Analog CO/Combustible gas sensor (MQ9)
19.59 AUD

SKU: SEN0134

$19.59 AUD, inc GST
Ships today (delivered by Mon, 12th of Dec)
Shipping Offer

OR

Introduction

MQ-9 gas sensor has high sensitity to Carbon Monoxide, Methane and LPG. The sensor can be used to detect different gases containing CO and combustible gases, it is low cost and suitable for different applications.

Sensitive material of MQ-9 gas sensor is SnO2, which has a lower conductivity in clean air. It makes detection by cycling high and low temperature, and detects CO when low temperature (heated
by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. When high temperature (heated by 5.0V), it detects Methane, Propane etc combustible gas and cleans the other gases adsorbed under low temperature.

Applications
  • Domestic gas leakage detector
  • Industrial gas detector
  • Portable gas detector
Specification
  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition:  1-Output  2-GND  3-VCC
  • Sensor Type: Semiconductor
  • Concentration:
    • 10-1000ppm CO
    • 100-10000ppm combustible gas
    • Good sensitivity to CO/Combustible gas
    • High sensitivity to Methane, Propane and CO
    • Long life and low cost
  • Size: 40x20mm
Shipping List
  • Analog CO/Combustible gas sensor(MQ9)1unit
