Adafruit PiTFT 2.4 HAT Mini Kit - 320x240 TFT Touchscreen

SKU: ADA2455 Brand: Adafruit

Is this not the cutest little display for the Raspberry Pi? It features a 2.4" display with 320x240 16-bit color pixels and a resistive touch overlay. The HAT uses...

$73.75 AUD, inc GST

$67.05 AUD, exc GST

Quantity Discounts:

6-12 $64.36 (exc GST)
12+ $62.35 (exc GST)

Out of Stock

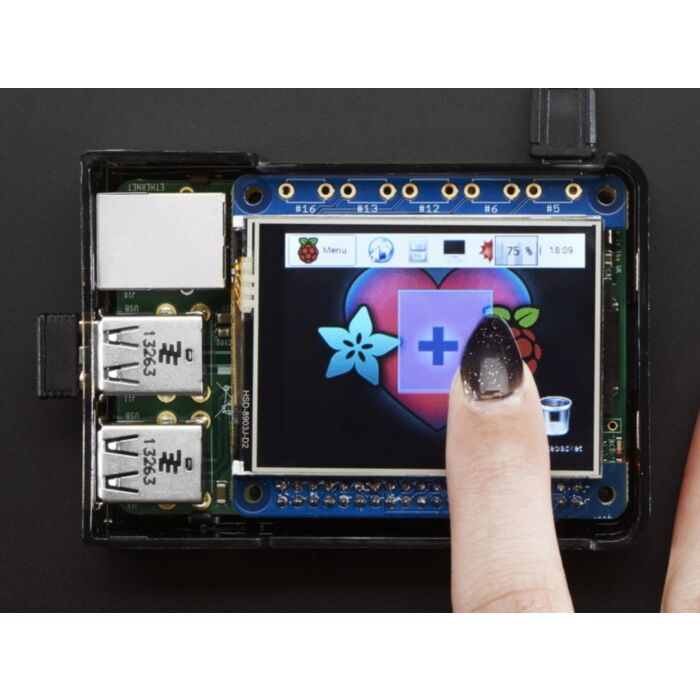

Is this not the cutest little display for the Raspberry Pi? It features a 2.4" display with 320x240 16-bit color pixels and a resistive touch overlay. The HAT uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!

It's designed to fit nicely onto the Pi Model Zero, A+, B+, Pi 2, Pi 3 - any Pi with a 2x20 connector.

This design uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since Adafruit had a tiny bit of space, there's 5 spots for optional slim tactile switches wired to five GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.

Adafruit have a right-angle 26-pin connector off to the side. You can connect a classic 26-pin Raspberry Pi GPIO cable in order to access the rest of the GPIO through a Cobbler, etc.

To make it super easy for use: Adafruit have created a custom kernel package based of off Notro's awesome framebuffer work, so you can install it over your existing Raspbian (or derivative) images in just a few commands.

Each order ships with an assembled HAT with 2.4" TFT display with resistive touchscreen and a 2x20 female socket header. Some light soldering is required to attach the header but it is easy work for anyone with a soldering iron & solder.Alternatively, you can use a stacking type header instead if you'd like to plug a 2x20 GPIO cable on top

Raspberry Pi, Pi enclosure, 26-pin GPIO cable, tactile switches are not included!

Adafruit's tutorial series shows you how to install the software, as well as calibrate the touchscreen, display videos, display images such as from your PiCam and more, However, some of our customers have had issues with Pi 4s. See this forum thread before following the guide.

Technical Details

Board Dimensions: 65mm x 57mm / 2.6" x 2.2"
Screen Dimensions: 55mm x 40mm / 2.2" x 1.6"
320x240 resolution, 2.4" diagonal TFT with 16-bit color
Datasheets, EagleCAD PCB files, Fritzing object and more available in the product tutorial
