Adafruit Perma-Proto Mint Tin Size Breadboard PCB

Rating:
100% of 100
SKU: ADA723 Brand: Adafruit
Making a project that will fit into a "Altoids" Mint Tin? Put down that PCB shear and pick up a Perma-Proto in the new exciting minty shape!
$12.50 AUD, inc GST
$11.36 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 05 and Apr 08

Quantity Discounts:

  • 10-25 $10.91 (exc GST)
  • 25+ $10.56 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Making a project that will fit into a "Altoids" Mint Tin? Put down that PCB shear and pick up a Perma-Proto in the new exciting minty shape!

Customers have asked Adafruit to carry basic perf-board, but Adafruit never liked the look of most basic perf: its always crummy quality, with pads that flake off and no labeling. Then Adafruit thought about how people actually prototype - usually starting with a solderless breadboard and then transferring the parts to a more permanent PCB. That's when Adafruit realized what people would really like is a proto board that makes it easy!

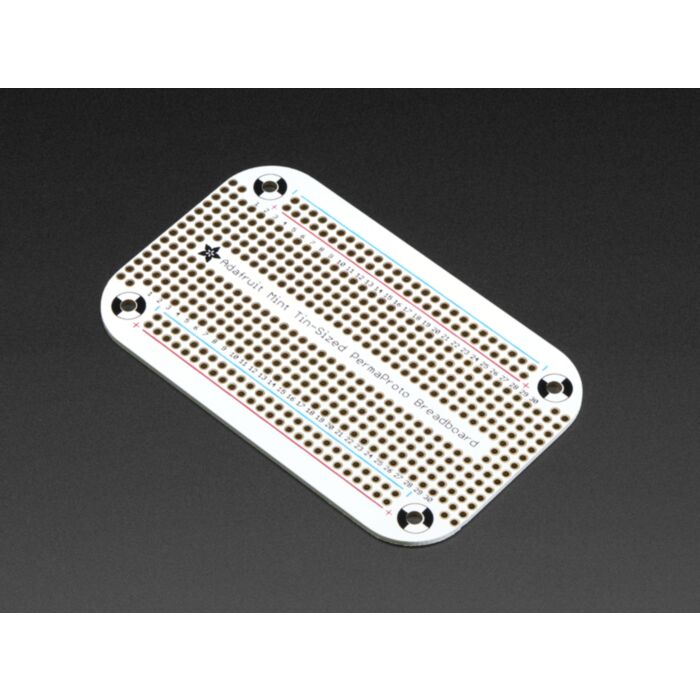

This proto-board is the PCB you always wish you had, but never realized it! Adafruit took the basic layout of a half-sized breadboard, extended it to the size of a mint tin and turned that into a beautiful PCB. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy. The bottom has 30 rows of 5-hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so you can easily cut traces when necessary. There are another 80 holes for general wiring on the edges. Adafruit used 1.2mm diameter drill holes so even parts with big leads will fit. All holes are thru-plated for strength - these wont peel off with rework. The finish is a gold plate - you won't get oxidation like with bare copper perf! There are also four big mounting holes so you can attach the PCB to the tin. A perfect match for a Altoids-sized mint tin

Comes one per package. Once you use a Perma-Proto board, you'll never go back!

Technical Details

  • 30 rows of double 5-hole rows + 80 individual holes
  • 4 power rails with positive/negative markings
  • 3.6" x 2.24" (92mm x 57mm), 0.063" thick FR4
  • 1.2mm / 0.047" drill holes
  • Four 3.0mm mounting holes, 3" x 1.65" square
