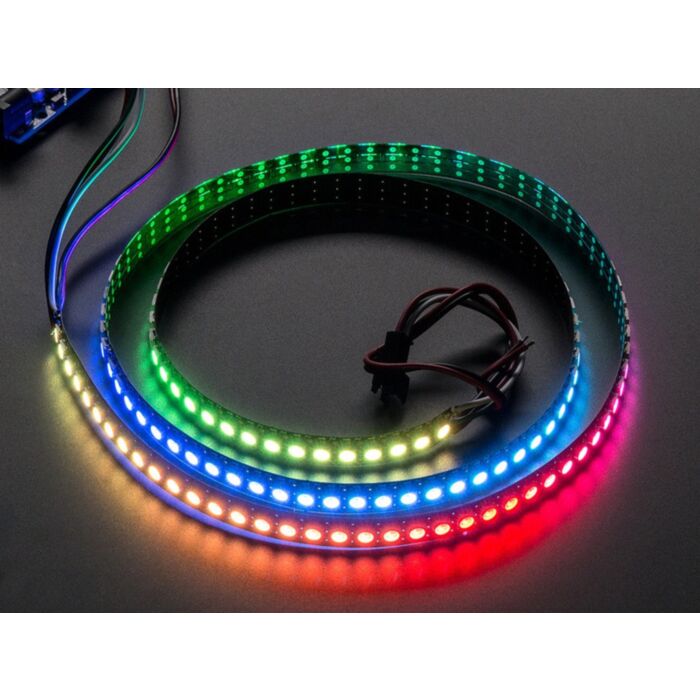

Adafruit NeoPixel Digital RGB LED Strip 144 LED - 1m Black - BLACK

SKU: ADA1506

$103.12 AUD, inc GST

More Views

Adafruit NeoPixel Digital RGB LED Strip 144 LED - 1m Black - BLACK
103.12 AUD

SKU: ADA1506

$103.12 AUD, inc GST
100 units ship in 4 to 6 days (delivered by Wed, 14th of Dec)
OR

Adafruit crammed ALL THE NEOPIXELS into this strip! An unbelievable 144 individually-controllable LED pixels on a flexible PCB. It's completely out of control and ready for you to blink. This strip has a black mask, and an extra heavy flex PCB.

These LED strips are even more fun and glowy. There are 144 RGB LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). The LEDs are controlled by shift-registers that are chained up and down the strip so you can shorten or lengthen the strip. Only 1 digital out pin is required to send data. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

All your high-density LED dreams answered, yet there are a few things to watch for.

  • First up, the ultra-high density means much higher power usage over a certain distance -35 Watts max (~7 Amps @ 5V). The max rating is assuming all the LEDs are on full white, usually the actual current for colorful design is about 1/3 to 1/2 the max current. A good power supply such as Adafruit's 5V 10A supply is key!
  • Second, to get high density, the controller chip is inside the LED, which is kind of cool, but also means that the chip only uses a single pin for input and a single pin for output. The protocol used is very very timing-specific and can only be controlled by microcontrollers with highly repeatable 100nS timing precision. Adafruit have example code for using with the Arduino Uno/Mega microcontroller at 8MHz and 16MHz, but it will not work with the Raspberry Pi, Basic Stamp, NETduino, any other interpreted/virtual machine microprocessor or any processor slower than 8 MHz. For those processors, check Adafruit's 32 LED/meter digital LED strip which has SPI-like input/output and works well with Pi, NETduino, and other processors.
  • Third, just because you have all those pixels doesn't mean you have the RAM for it - the entire strip must be buffered in memory, and Adafruit have found many Arduino UNO projects only have about 500bytes of RAM available after all the extras are included - enough for about 1 meter of the 144 LED pixels. If you want to drive multiple meters and have some other libraries included, use a Mega.
  • This strip does not come with a waterproof sheathing, Adafruit are working on it but as it's a custom sized strip, the sheathing is custom too. Adafruit have no ETA as to when Adafruit will have the waterproof version, for now Adafruit only have this version available!

The strip is made of flexible PCB material, you can cut this stuff pretty easily with wire cutters, there are cut-lines every LED. Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer, just watch how much current you need! Adafruit have a 5V/4A supply that should be able to drive 1 meter (depending on use) and a 5V/10A supply that can drive up to 2 meters (depending on use) You must use a 5V DC power supply to power these strips, do not use higher than 6V or you can destroy the entire strip.

They come in 1 meter strips with a 3-pin JST SM connector on each end and separated power/ground wires. These strips are sold by the meter! There is a join in the middle of the strip and the LEDs are not perfectly spaced at that point - it's just a tradeoff with the ability of the flex PCB maker and density.

To wire up these strips we suggest picking up a 2.1mm DC jack to wire in so you can connect one of Adafruit's wall adapters to power it. You can connect to the input side with any sort of wire. Adafruit don't stock the matching 3-pin JST connector!

At this time, we do not have a detailed usage tutorial or datasheet (still working on it!) However we do have ready-to-go library code for both the Arduino UNO/Duemilanove/Diecimila and Mega/ADK (all versions).

Technical Details

Technical specs:

  • 144 LEDs per meter
  • Maximum 5V @ 60mA draw per LED (all LEDs on full brightness)
  • 5VDC power requirement (do not exceed 6VDC) - no polarity protection!
  • 1 integrated RGB LEDs per segment, individually controllable
  • LED wavelengths: 630nm/530nm/475nm
  • Connector: 3-pin JST SM
  • Dimensions: 1000mm / 39.37" x 12mm / 0.47"
  • Power Lead: 196.85mm / 7.75"
  • Connect Lead: 92.07mm / 3.62"
  • Weight: 35.42g
