Adafruit I2C Controlled + Keypad Shield Kit for 16x2 LCD

SKU: ADA715

$22.56 AUD, inc GST
Adafruit I2C Controlled + Keypad Shield Kit for 16x2 LCD
22.56 AUD

SKU: ADA715

$22.56 AUD, inc GST
Ships today (delivered by Wed, 7th of Dec)
Shipping Offer

OR

This new Adafruit shield makes it easy to use a 16x2 Character LCD. The 16x2 Character LCD is NOT, repeat, NOT, included

Adafruit really likes the range of LCDs Adafruit stock in the shop, such as Adafruit's classic blue & white as well as the fancy RGB negative and RGB positive. Unfortunately, these LCDs do require quite a few digital pins, 6 to control the LCD and then perhaps another 3 to control the RGB backlight for a total of 9 pins. That's half of the pins available on a classic Arduino!

With this in mind, Adafruit wanted to make it easier for people to get these LCD into their projects so they devised a shield that lets you control a 16x2 Character LCD, up to 3 backlight pins AND 5 keypad pins using only the two I2C pins on the Arduino! The best part is you don't really lose those two pins either, since you can stick i2c-based sensors, RTCs, etc and have them share the I2C bus. This is a super slick way to add a display without all the wiring hassle.

This shield is perfect for when you want to build a stand-alone project with its own user interface. The 4 directional buttons plus select button allows basic control without having to attach a bulky computer.

The shield is designed for 'classic' Arduinos such as the Uno, Duemilanove, Diecimilla, etc. It will also work perfectly with Arduino Mega R3's. Earlier Mega's have the I2C pins in a different location and will require you to solder two wires from the I2C pins on the shield and plug them into the different I2C locations at Digital 20 & 21. This shield will not fit easily on top of an Arduino Ethernet because of the Ethernet jack height. You can use a set of stacking headers to give the shield more 'lift' above the jack.

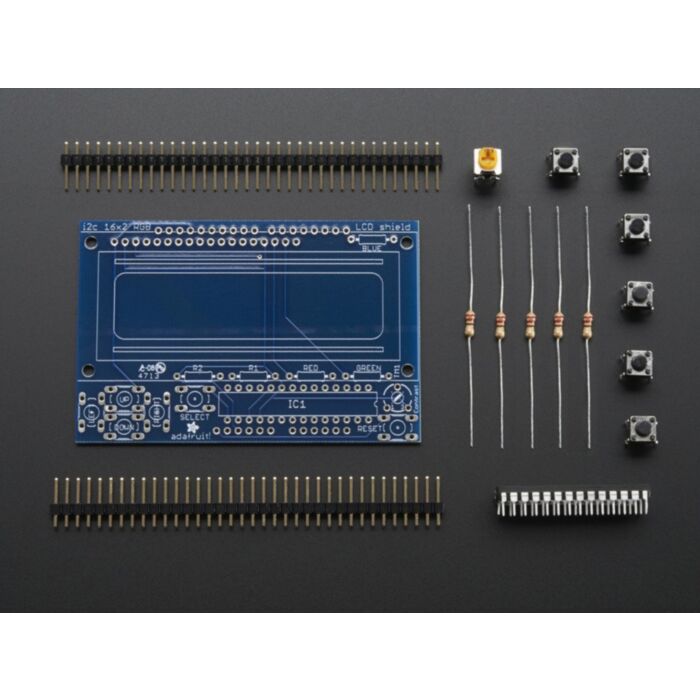

This shield comes as a kit! Included is a high quality, USA-made PCB and all the components (buttons, header etc). An LCD is not included, you will need to order one of Adafruit's fine 16x2 Character LCDs - just pick up whichever style you like the most (blue & white, RGB negative or RGB positive).

This kit has only been tested with the LCDs Adafruit sell and support, if you use another Adafruit will not be able to guarantee it works and Adafruit will not be able to troubleshot or support it!

Assembly is easy, even if you've never soldered before and the kit can be completed in 30 minutes. Check the product tutorial page for assembly instructions before purchasing

If you don't already have an LCD we suggest picking up a 'pack' which includes the LCD and will save you a bundle: RGB Positive Pack, RGB Negative Pack and Basic Blue&White Pack.

Of course, They even wrote an easy-to-use Arduino library that you can easily add to your project. It acts just like the built in LiquidCrystal library, but automatically uses the shield pins. You can also easily query the 5 keypad buttons to get input through the library, so you get extra buttons without using any more pins.

At this time, the library and shield can control the RGB backlight of Adafruit's character LCDs by turning each LED on or off. This means you can display the following colors: Red, Yellow, Green, Teal, Blue, Violet, White and all off. There is no support for PWM control of the backlight at this time, so if you need to have more granular control of the RGB backlight to display a larger range of colors, this shield can't do that (the I2C expander does not have PWM output).

Product page with tutorials, documentation and assembly information

Technical Details

  • Dimensions: 2.1" x 3.2"
  • For use with 16x2 Character displays
  • Plug and play with any Arduino 'classic' - UNO, duemilanove, diecimilla, etc as well as Arduino Mega R3.
  • Uses only the I2C pins - Analog 4 & 5 on classic Arduinos, Digital 20 and 21 on Arduino Mega R3
